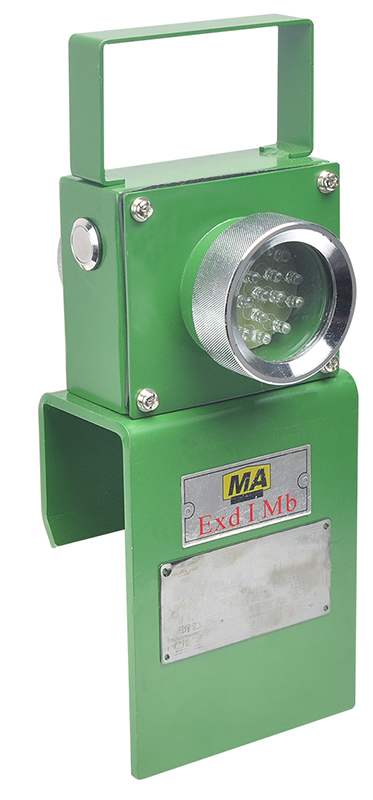

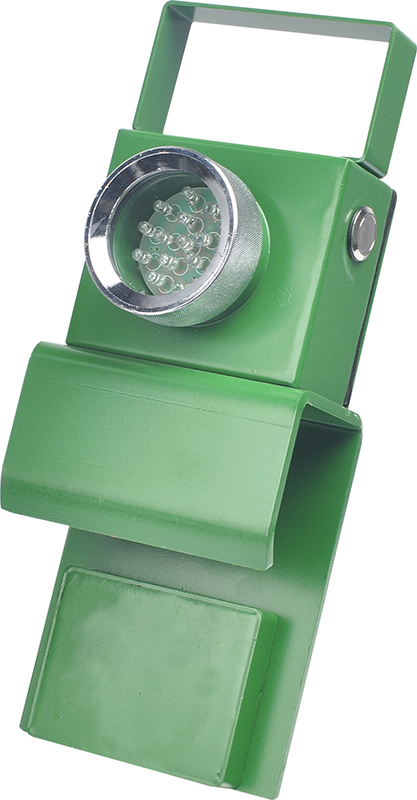

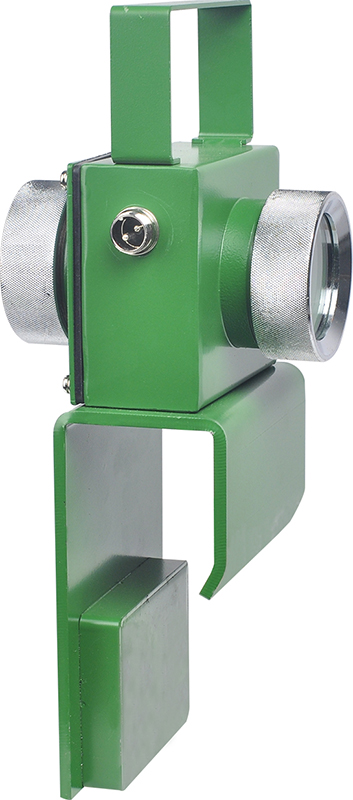

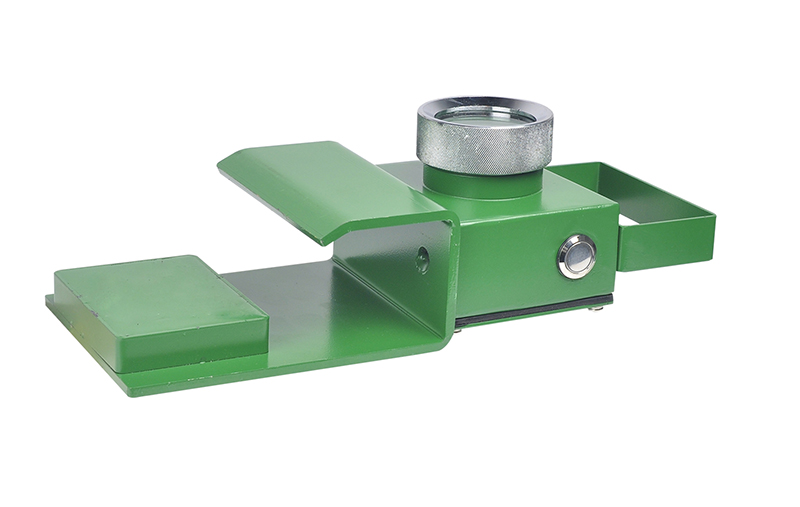

產品中心 礦用防爆燈 礦用隔爆型機車燈系列 DGY0.36/3.6L(A)礦用隔爆型機車紅尾燈
|
產品型號 |
DGY0.36/3.6LX(A) |
|
防爆標志 |
Ex db[ib]| Mb |
|
額定電壓 |
DC3.6V |
|
防護等級 |
IP66 |
|
反腐等級 |
WF2 |
|
進線口螺紋 |
|
|
引入電纜 |
Φ10-14mm |
|
工作溫度 |
-20°c-40°c |
|

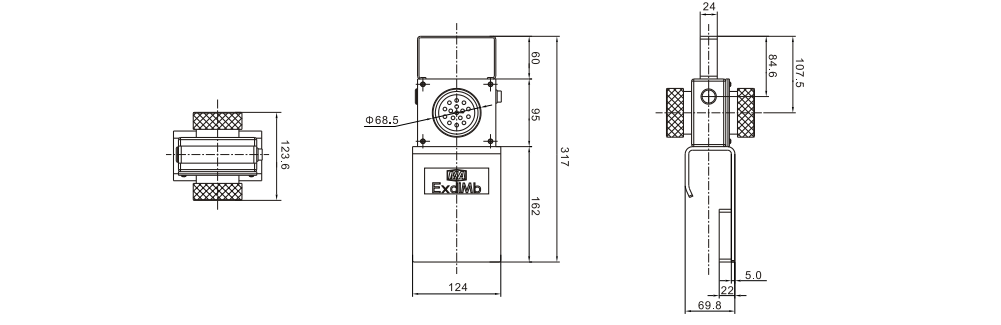

外形尺寸 |
124×317×124mm |
|
凈重 |
3.3kg |
|
數量 |
2pcs/箱 |
|
執行標準 |
GB/T3836.1-2021 GB/T3836.2-2021 MT221-2005 |
|
|
產品型號 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DGY0.36/3.6L(A) |
|
DHY0.36/3.6 |
|
DHY4.8L |
|
DHY4.8LXA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光源 |
|
紅光LED |
|
紅光LED |
|
紅光LED |
|
紅光LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光通量 |
|
450LM |
|
450LM |
|
450LM |
|
450LM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
額定功率 |
|
0.36W |
|
0.36W |
|
0.36W |
|
0.36W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
色溫 |
|
6000-6500K |
|
6000-6500K |
|
6000-6500K |
|
6000-6500K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光照度 |
|
2LX |
|
2LX |
|
2LX |
|
2LX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
